40.5-126kV Dry-Type HV Wall Bushing
- Dimension-table 1
- Dimension-table 2
- Electrical data

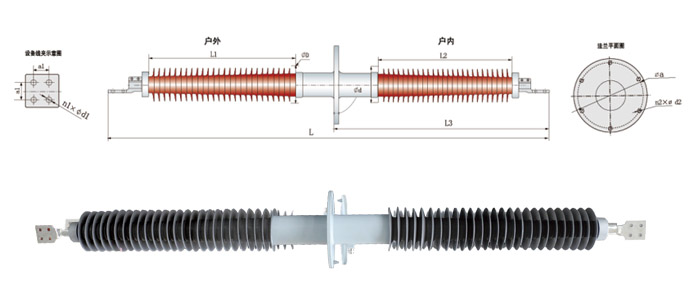

| Dimension -table 1 |
| FCRG1- 40.5/630A or less | FCRG1- 40.5/800-1250A | FCRG1- 40.5/1600-2500A | FCRG1- 40.5/2500A | FCRG1- 72.5/630A or less | FCRG1- 72.5/800-1250A |
| Rated voltage | （kV） | 40.5 | 40.5 | 40.5 | 40.5 | 72.5 | 72.5 |
| Total length | L | 1540 | 1560 | 1600 | 1600 | 2330 | 2360 |
| Outdoor side | L1 | 430 | 430 | 430 | 430 | 720 | 720 |
| ФD | 180 | 180 | 180 | 180 | 220 | 220 |
| Indoor side | L2 | 430 | 430 | 430 | 430 | 720 | 720 |
| Фd | 140 | 140 | 140 | 140 | 180 | 180 |
| L3 | 770 | 780 | 800 | 800 | 1165 | 1180 |
| Terminal blocks | a1 | 30 | 40 | 50 | 50 | 30 | 40 |
| n1×Фd1 | 4×Ф12 | 4×Ф14 | 4×Ф18 | 4×Ф18 | 4×Ф14 | 4×Ф14 |
| Mounting flange | Фa | Ф200 | Ф200 | Ф200 | Ф200 | Ф350 | Ф350 |
| n2×Фd2 | 6×Ф18 | 6×Ф18 | 6×Ф18 | 6×Ф18 | 6×Ф18 | 6×Ф18 |
| Nominal creepage distance | mm | 1020 | 1020 | 1020 | 1020 | 1820 | 1820 |
| Casing weight | kg | 30 | 40 | 45 | 55 | 60 | 70 |
Note:The outline dimension of the product in the table is recommended,all size can be designed according to the needs of users. Only one kind of CT length is listed on the table, and the user can design the CT length according to the product requirements.With the changes of CT length, relevant dimensions also change.
| Dimension -table 2 |
| FCRG1- 72.5/1600-2000A | FCRG1- 72.5/2500A | FCRG1- 126/630A or less | FCRG1- 126/800-1250A | FCRG1- 126/1600-2500A | FCRG1- 126/2500A |
| Rated voltage | （kV） | 72.5 | 72.5 | 126 | 126 | 126 | 126 |
| Total length | L | 2400 | 2400 | 3140 | 3160 | 3200 | 3200 |
| Outdoor side | L1 | 720 | 720 | 1050 | 1050 | 1050 | 1050 |
| ФD | 220 | 220 | 220 | 220 | 220 | 220 |
| Indoor side | L2 | 720 | 720 | 1050 | 1050 | 1050 | 1050 |
| Фd | 180 | 180 | 180 | 180 | 180 | 180 |
| L3 | 1200 | 1200 | 1570 | 1580 | 1600 | 1600 |
| Terminal blocks | a1 | 50 | 50 | 30 | 40 | 50 | 60 |
| n1×Фd1 | 4×Ф18 | 4×Ф18 | 4×Ф14 | 4×Ф14 | 4×Ф18 | 4×Ф18 |
| Mounting flange | Фa | Ф350 | Ф350 | Ф350 | Ф350 | Ф350 | Ф350 |
| n2×Фd2 | 6×Ф18 | 6×Ф18 | 6×Ф18 | 6×Ф18 | 6×Ф18 | 6×Ф18 |
| Nominal creepage distance | mm | 1820 | 1820 | 3200 | 3200 | 3200 | 3200 |
| Casing weight | kg | 75 | 80 | 90 | 100 | 105 | 110 |
