FCRG1-LZ Dry R.I.F./R.I.P Integrated Wall Bushing (Combined Current transformer)

FCRG1-LZ Dry R.I.F./R.I.P Integrated Wall Bushing (Combined Current transformer)




  • Dimension-table 1
  • Dimension-table 2
  • Electrical data

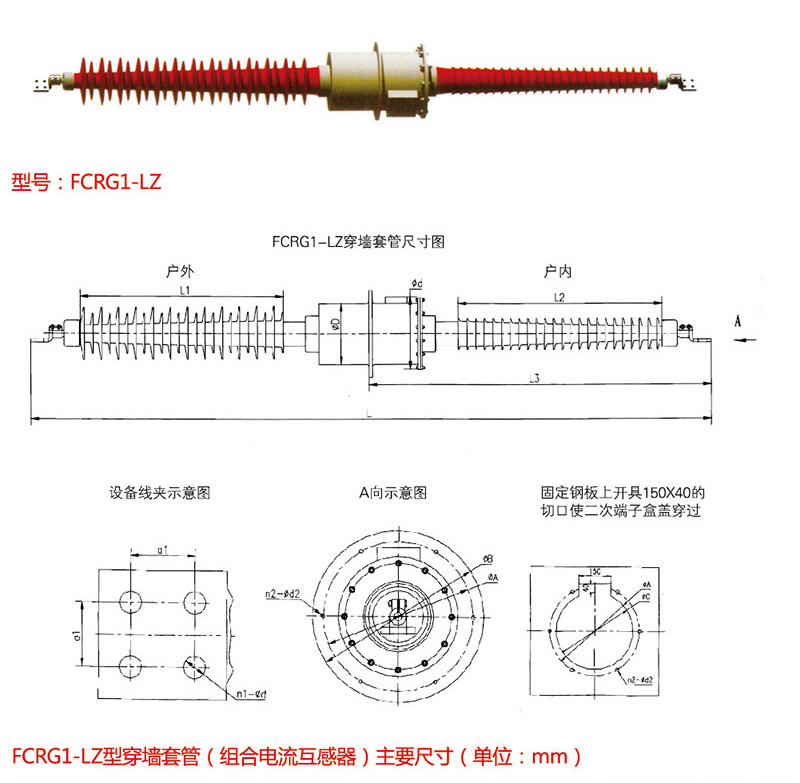

Dimension

-table 1


FCRG1-LZ-

40.5/2000A

or less

FCRG1-LZ-40.5/2500A

FCRG1-LZ

-72.5/2000A or less

FCRG1-LZ-

72.5/2500A

FCRG1-LZ-

126/2000A

or less

FCRG1-LZ-

126/2500A

Rated   voltage（kV）40.540.572.572.5126126
Total   lengthL166017002400240031603200
Outdoor sideL143043072072010501050
ФD280280310310310310
Indoor sideL243043072072010501050
Фd320320350350350350
L38308501200120015801600
Terminal blocksa1405040504050
n1×Фd14×Ф144×Ф184×Ф144×Ф184×Ф144×Ф18
 Mounting flange Фa350350420420420420
n2×Фd26×Ф186×Ф186×Ф186×Ф186×Ф186×Ф18
Nominal creepage distancemm125012502250225039103910
Casing   weightkg8585125125155155
