FCG1 Dry-Type HV Wall Bushing

FCG1 Dry-Type HV Wall Bushing

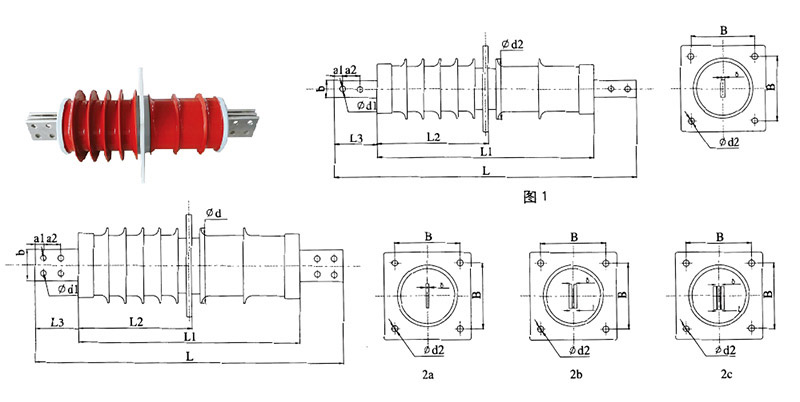

The main dimensions of 10kV wall bushing.

FCG1 Dry-Type HV Wall Bushing

FCG1 Dry-Type HV Wall Bushing

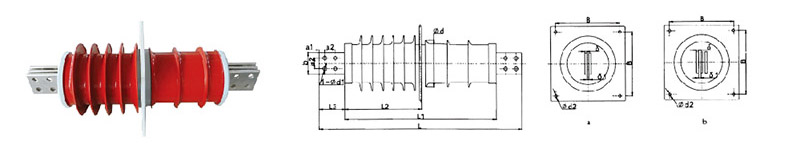

The main dimensions of 20kV wall bushing.

FCG1 Dry-Type HV Wall Bushing

Dimension-table 1
Dimension-table 2
Electrical data

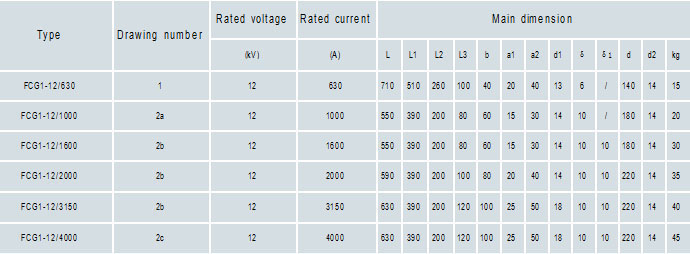

Dimension -table 1			FCG1-12/630	FCG1-12/1000	FCG1-12/1600	FCG1-12/2000	FCG1-12/3150	FCG1-12/4000
Drawing number			1	2a	2b	2b	2b	2c
Rated voltage		(kV)	12	12	12	12	12	12
Rated current		(A)	630	1000	1600	2000	3150	4000
Main dimension		L	710	550	550	590	630	630
		L1	510	390	390	390	390	390
		L2	260	200	200	200	200	200
		L3	100	80	80	100	120	120
		b	40	60	60	80	100	100
		a1	20	15	15	20	25	25
		a2	40	30	30	40	50	50
		d1	13	14	14	14	18	18
		δ	6	10	10	10	10	10
		δ1	/	/	10	10	10	10
		d	140	180	180	220	220	220
		d2	14	14	14	14	14	14
		kg	15	20	30	35	40	45

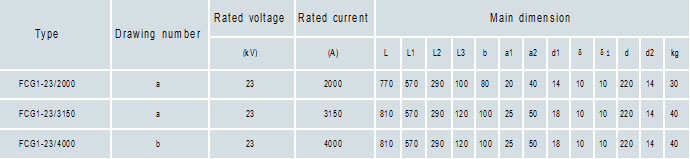

Dimension -table 2			FCG1-23/2000	FCG1-23/3150	FCG1-23/4000
Drawing number			a	a	b
Rated voltage		(kV)	23	23	23
Rated current		(A)	2000	3150	4000
Main dimension		L	770	810	810
		L1	570	570	570
		L2	290	290	290
		L3	100	120	120
		b	80	100	100
		a1	20	25	25
		a2	40	50	50
		d1	14	18	18
		δ	10	10	10
		δ1	10	10	10
		d	220	220	220
		d2	14	14	14
		kg	30	40	40
